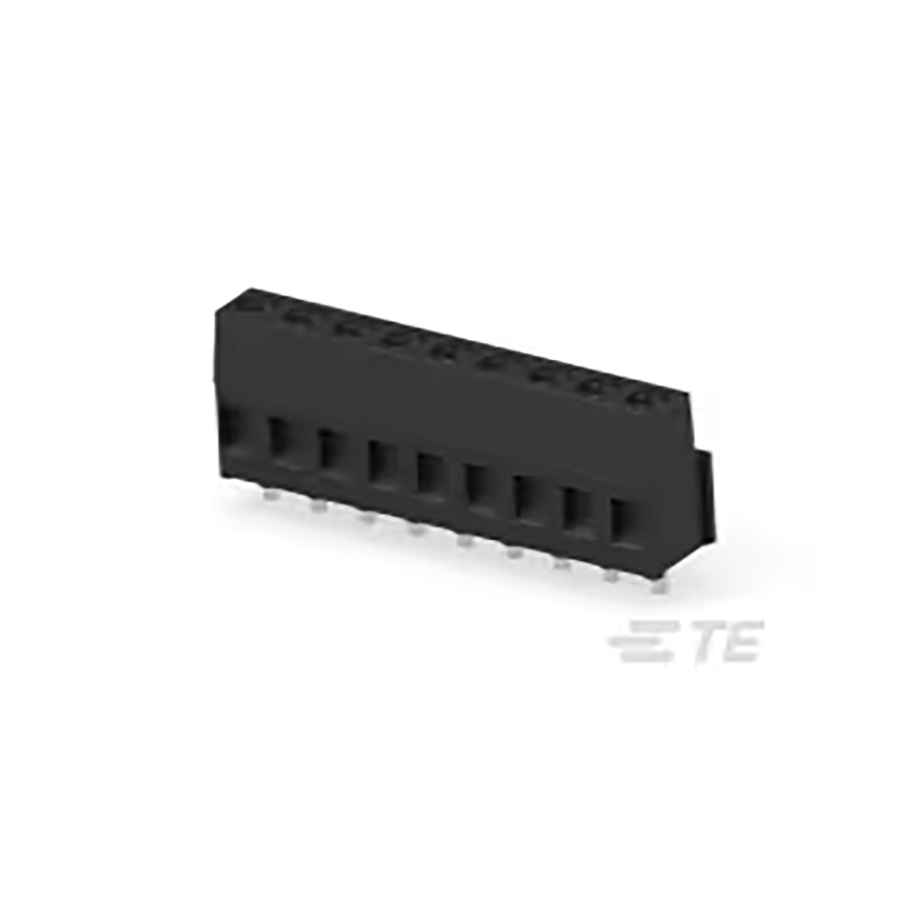

796949-9
Manufacturer:
TE Connectivity
Mfr.Part #:
796949-9
Datasheet:
Description:
Terminal Blocks Through Hole 9 5.08 mm 17.5 A 300 V 30 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Box |
| Voltage Rating | 300 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 17.5 A |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 9 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Number of Contacts | 9 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 12 AWG |
| Thread Size | M3 |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 9 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Black |
| Plating | Brass |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 12 AWG |
Stock: 310
Distributors
pcbx
pcbxUnit Price$3.24190
Ext.Price$3.24190
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.24190 | $3.24190 |
| 10 | $2.47160 | $24.71600 |
| 25 | $2.25571 | $56.39275 |
| 50 | $2.05867 | $102.93350 |
| 100 | $1.92787 | $192.78700 |
| 300 | $1.82882 | $548.64600 |
| 500 | $1.73486 | $867.43000 |
| 1000 | $1.64574 | $1645.74000 |
